xposed入门: FDex2源码分析与实战登山赛车

android

准备

lsposed

xposed仅支持到android 7.0版本, 在更高的版本有许多替代, 最常用的便是lsposed

特性 Xposed LSPosed
Hook 方式 直接 Hook Zygote 进程 通过 Magisk / Riru 注入 Zygote
兼容性 旧版 Android（7.0-10.0） 适用于 Android 8.0+
模块管理 需要 Xposed Installer 需要 LSPosed Manager
性能影响 修改系统 Zygote，易损坏 仅 Hook 选定进程，更稳定
安全性 易被检测（如 SafetyNet） 更隐蔽，适用于新版本 Android

不过二者模块是几乎完全兼容的, 语法什么的都差不多

magisk

lsposed需要magisk配合才能使用

android studio

android开发必备

模块init

  1. android studio创建一个新项目

  2. 在main目录下新增一个libs目录, 将XposedBridge.jar放入, 放入后右击选择Add As Library(注: 该依赖也可以通过在线导入)

  3. 到build.gradle中将上一步在dependencies对应产生的引入依赖语句中的implementation 改为 compileOnly

  4. 在main目录下新增assets目录, 其中新建文件xposed_init, 添加一行内容包名.xposed入口类名

  5. 在main目录下新增/res/values目录, 创建文件arrays.xml, 用于管理模块作用域

    1
    2
    3
    4
    5
    6
    7
    8
    9
    <resources>
        <string-array name="xposedscope" >
            <!-- 这里填写模块的作用域应用的包名，可以填多个。 -->
            <item>ceui.lisa.pixiv</item>
            <item>com.xjs.ehviewer</item>
            <item>com.picacomic.fregata</item>
        </string-array>
    </resources>

  6. 修改AndroidManifest.xml在\标签中新增内容

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    <application>
            <!-- other information here -->
    		<!-- 表明这是一个xposed模块, xposed通过这个标识识别模块, 不得更改 -->
            <meta-data
                android:name="xposedmodule"
                android:value="true" />
        	 <!-- 模块描述 -->
            <meta-data
                android:name="xposeddescription"
                android:value="Easy example which makes the status bar clock red and adds a smiley" />
        	 <!-- 最低要求xposed版本, 根据导入的xposed版本填 -->
            <meta-data
                android:name="xposedminversion"
                android:value="82" />
        	 <!-- 模块作用域 -->
            <meta-data
            	android:name="xposedscope"
            	android:resource="@array/xposedscope"/>
    </application>

文档速览

https://api.xposed.info/

快速过一遍文档中常用部分

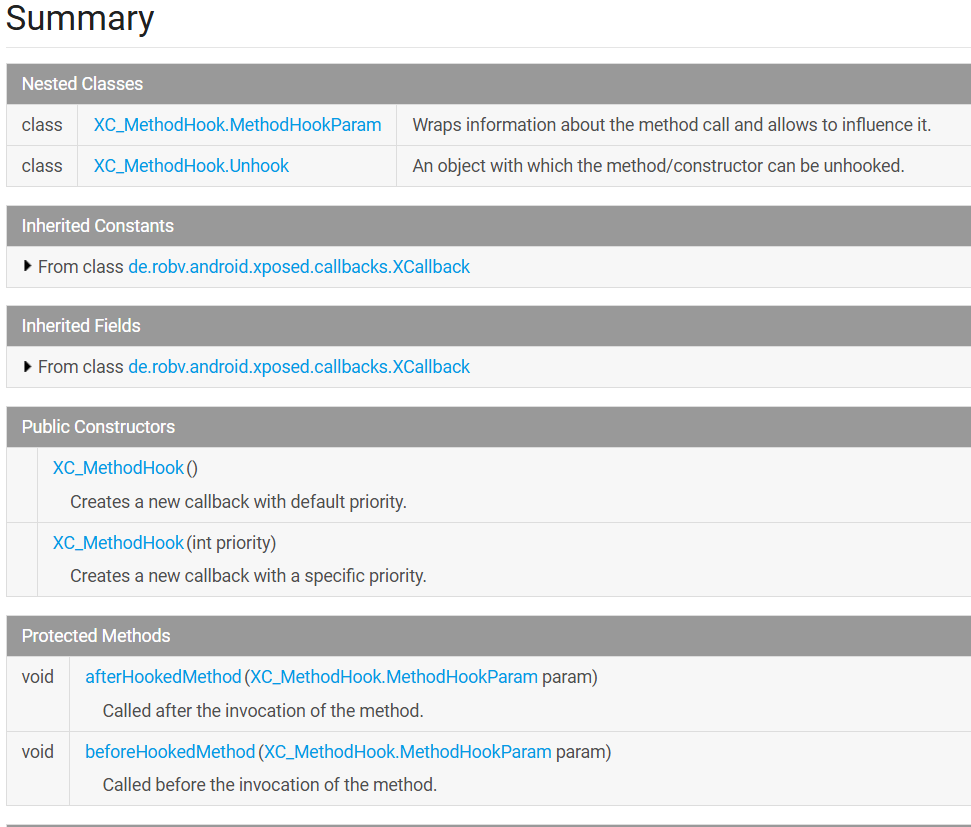

XC_MethodHook

钩子回调类, 进行hook时一般需要创建该类的匿名子类

MethodHookParam

封装关于方法调用的信息, 也就是回hook的参数

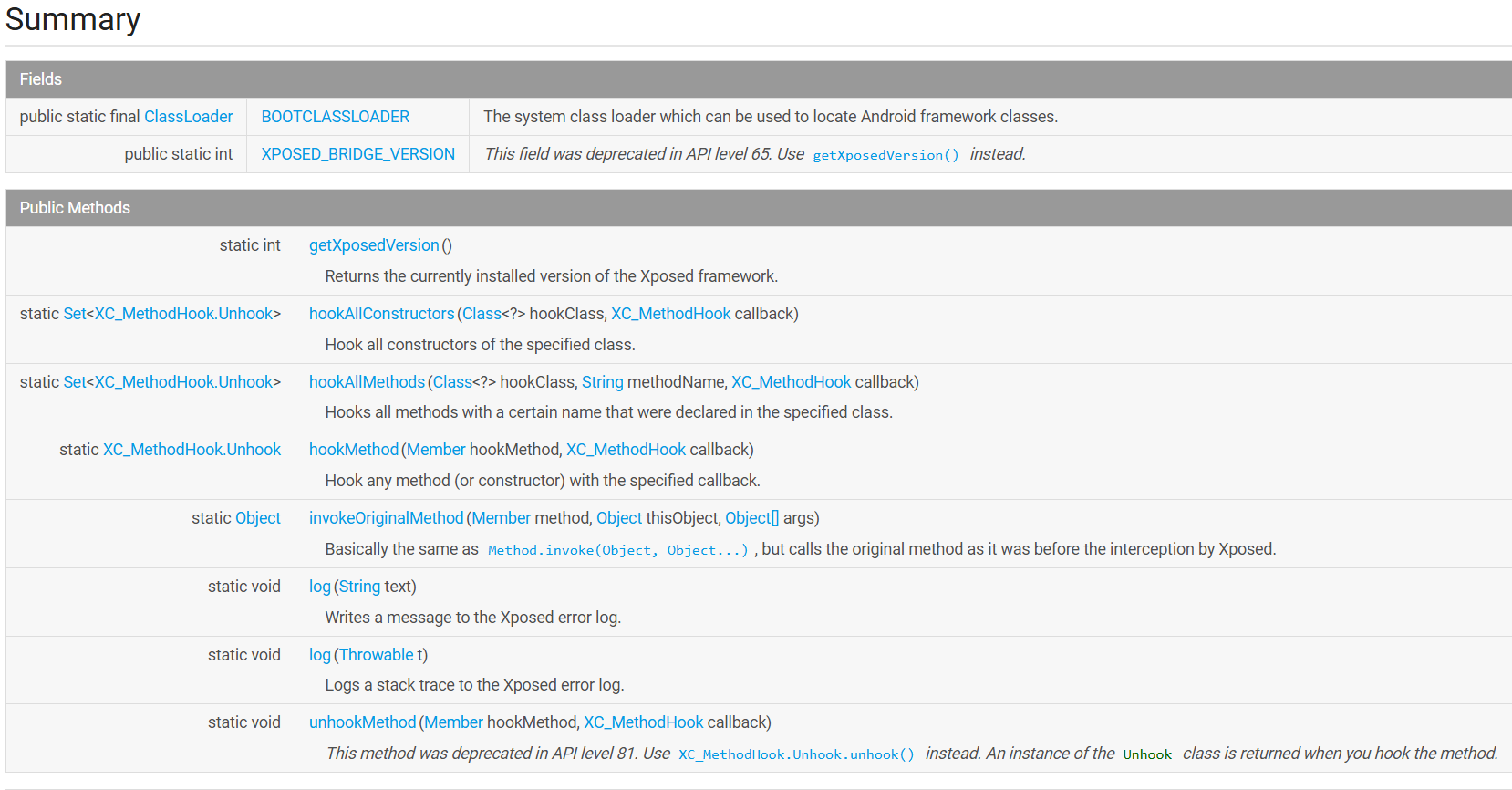

XposedBridge

提供与 Xposed 框架交互的核心方法

XposedHelper

提供一些实用方法，用于快速hook, 反射和动态操作类、方法、字段等

入口

Xposed/LSPosed 模块的入口类通常需要实现 Xposed 框架的接口，用于接收 Hook 事件并执行 Hook 逻辑, 对于一个模块至少应该实现一个该类接口

主要有四类接口

IXposedHookLoadPackage

用于监听应用的加载过程并hook

重写方法: handleLoadPackage

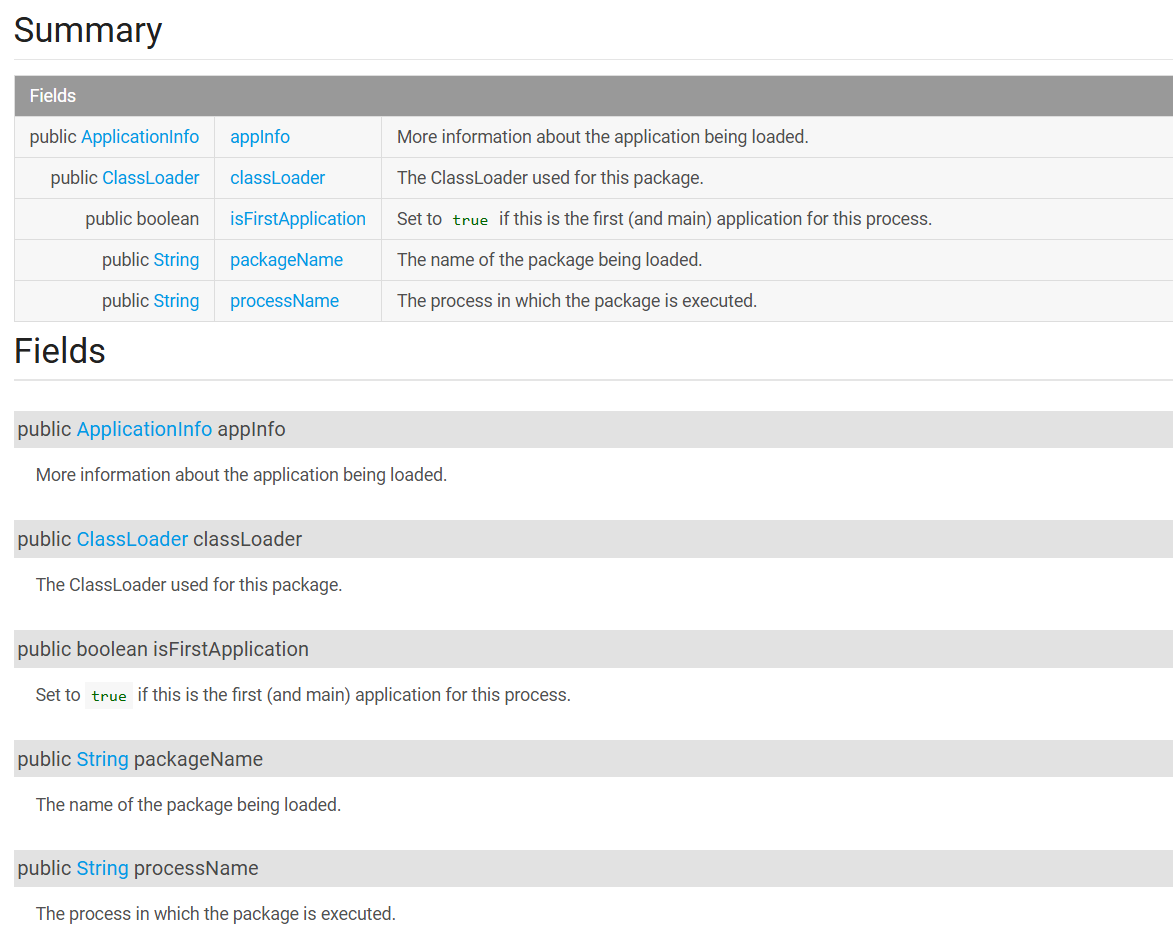

参数:XC_LoadPackage.LoadPackageParam

示例

注意:当app内存在多个包时, 使用参数lpparam.packageName过滤也只能使用应用包名

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
import de.robv.android.xposed.IXposedHookLoadPackage;
import de.robv.android.xposed.XC_LoadPackage;
import de.robv.android.xposed.XposedBridge;
import de.robv.android.xposed.XposedHelpers;

public class MainHook implements IXposedHookLoadPackage {
    @Override
    public void handleLoadPackage(XC_LoadPackage.LoadPackageParam lpparam) throws Throwable {
        if (!lpparam.packageName.equals("com.target.app")) return; // 仅 Hook 目标应用
        XposedBridge.log("Hooking: " + lpparam.packageName);

        // 示例：Hook getPackageName() 方法
        XposedHelpers.findAndHookMethod(
            "android.app.Application", lpparam.classLoader, "getPackageName",
            new XC_MethodHook() {
                @Override
                protected void afterHookedMethod(MethodHookParam param) {
                    param.setResult("com.fake.package");
                }
            }
        );
    }
}

IXposedHookInitPackageResources

监听资源加载并hook, 用于修改目标应用的 UI 资源，例如替换图片、修改文本等

重写方法: handleInitPackageResources

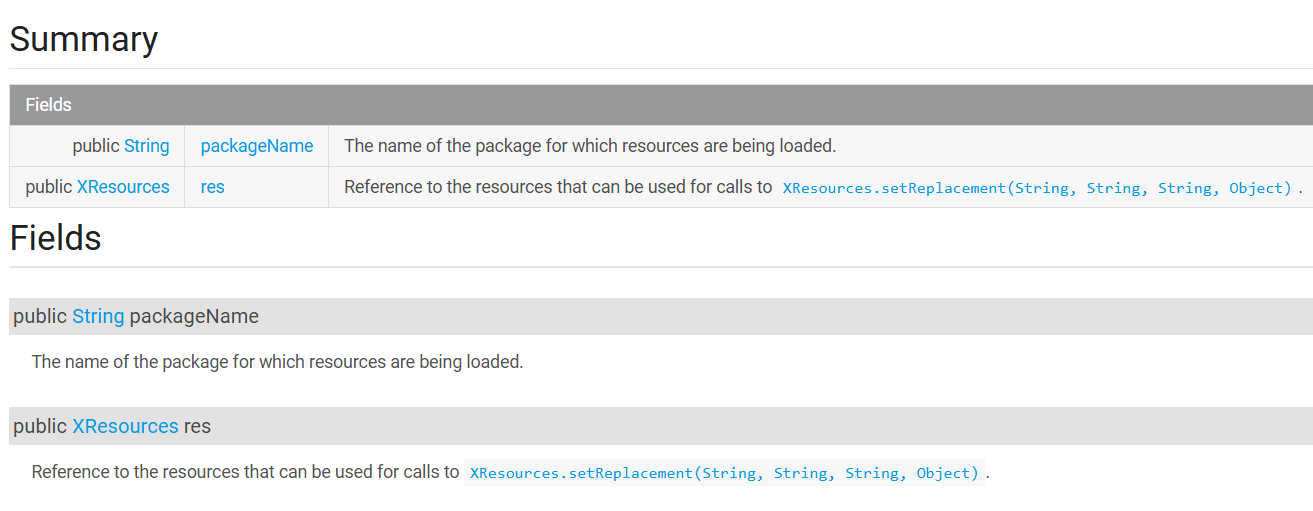

参数:XC_InitPackageResources.InitPackageResourcesParam

示例:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
import de.robv.android.xposed.IXposedHookInitPackageResources;
import de.robv.android.xposed.callbacks.XC_InitPackageResources;

public class ResourceHook implements IXposedHookInitPackageResources {
    @Override
    public void handleInitPackageResources(XC_InitPackageResources.InitPackageResourcesParam resparam) throws Throwable {
        if (!resparam.packageName.equals("com.target.app")) return;

        // 替换字符串资源（如修改 App 标题）
        resparam.res.setReplacement("com.target.app", "string", "app_name", "Hooked App!");

        // 替换图片资源
        resparam.res.setReplacement("com.target.app", "drawable", "app_icon", XposedHelpers.findSystemClass("com.myhook.module.R.drawable.new_icon"));
    }
}

IXposedHookZygoteInit

系统启动时 进行 Hook，影响所有应用

重写方法:initZygote

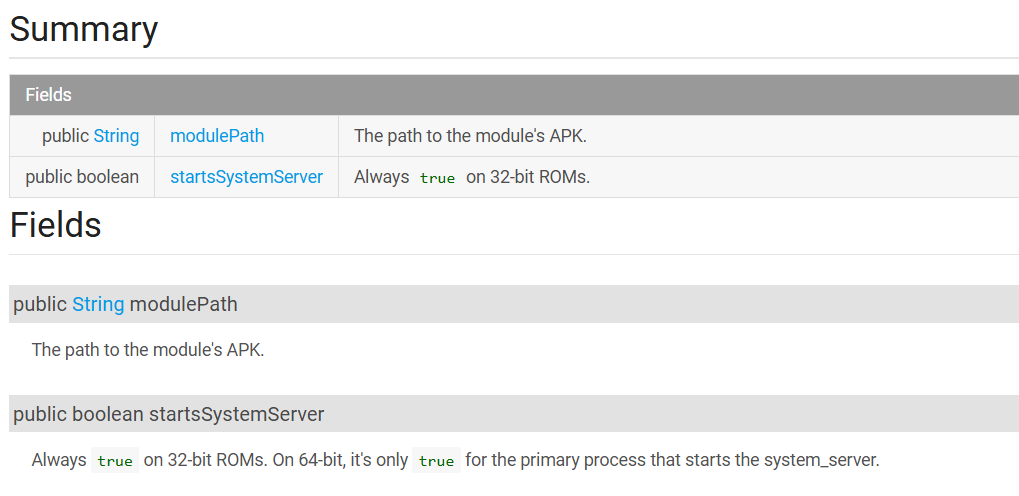

参数:StartupParam

示例:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
import de.robv.android.xposed.IXposedHookZygoteInit;
import de.robv.android.xposed.XposedBridge;
import de.robv.android.xposed.XposedHelpers;

public class ZygoteHook implements IXposedHookZygoteInit {
    @Override
    public void initZygote(StartupParam startupParam) throws Throwable {
        XposedBridge.log("Zygote Hook Initialized!");

        // Hook 所有应用的 getDeviceId()
        XposedHelpers.findAndHookMethod(
            "android.telephony.TelephonyManager", null, "getDeviceId",
            new XC_MethodHook() {
                @Override
                protected void afterHookedMethod(MethodHookParam param) {
                    param.setResult("000000000000000");
                }
            }
        );
    }
}

接口组合

在一个 Xposed 模块中，可以同时实现多个 Hook 接口，例如：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
import de.robv.android.xposed.*;
import de.robv.android.xposed.callbacks.*;

public class MainHook implements IXposedHookLoadPackage, IXposedHookInitPackageResources {
    @Override
    public void handleLoadPackage(XC_LoadPackage.LoadPackageParam lpparam) throws Throwable {
        if (!lpparam.packageName.equals("com.target.app")) return;
        XposedBridge.log("Hooking: " + lpparam.packageName);

        // Hook getPackageName()
        XposedHelpers.findAndHookMethod("android.app.Application", lpparam.classLoader, "getPackageName",
            new XC_MethodHook() {
                @Override
                protected void afterHookedMethod(MethodHookParam param) {
                    param.setResult("com.fake.package");
                }
            });
    }

    @Override
    public void handleInitPackageResources(XC_InitPackageResources.InitPackageResourcesParam resparam) throws Throwable {
        if (!resparam.packageName.equals("com.target.app")) return;

        // 修改界面
        resparam.res.setReplacement("com.target.app", "string", "app_name", "Hooked App!");
    }
}

de.robv.android.xposed.callbacks

包含了 Xposed 框架中的回调接口和类，用于处理模块与框架之间的交互

de.robv.android.xposed.services

提供了与系统服务交互的工具类，通常用于读取文件、获取系统信息等操作

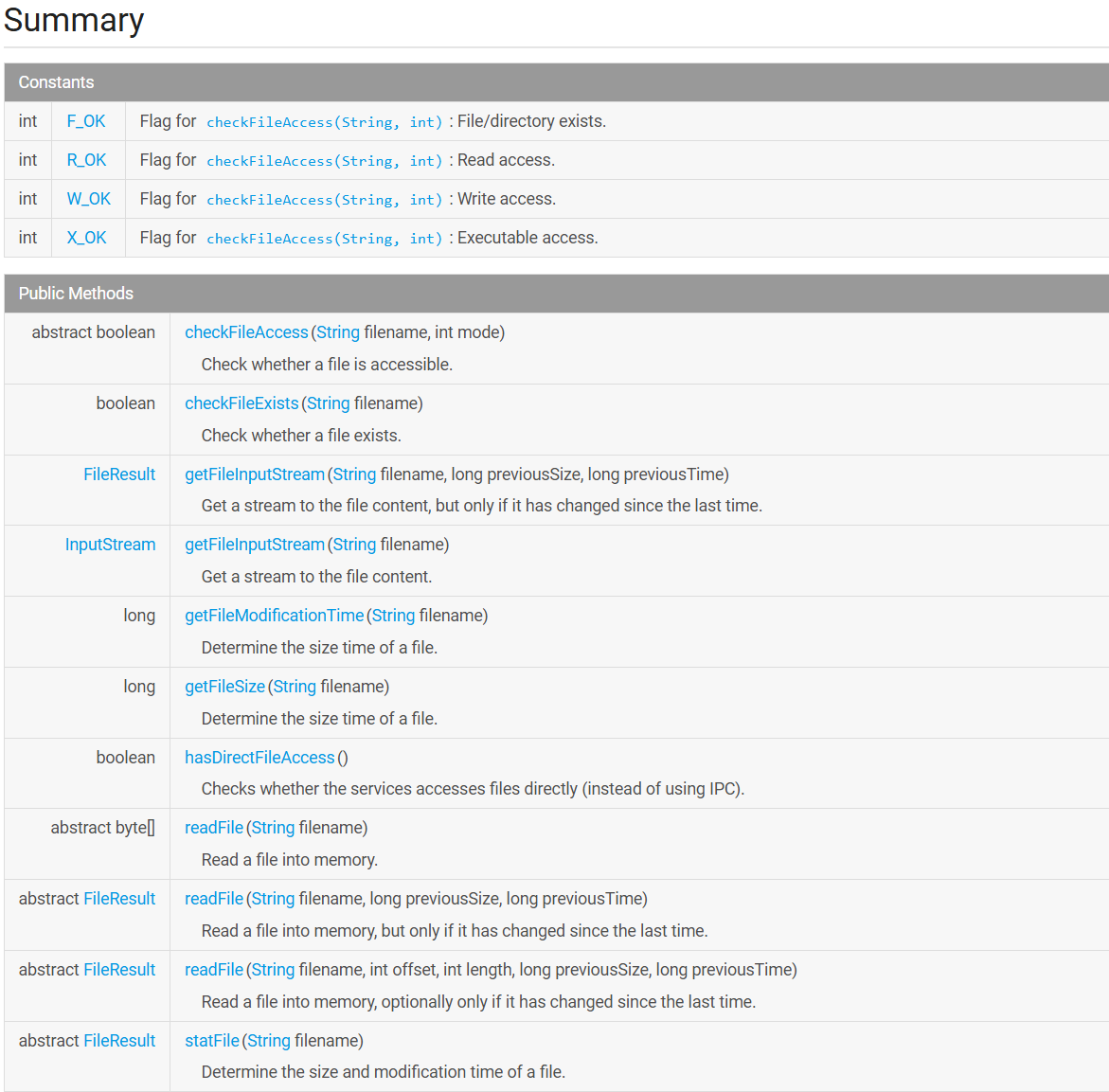

主要就是BaseService类

案例分析

FDex2源码分析

FDex2是早期针对整体加固的脱壳xposed模块, 其源码并不复杂

其依赖了android7.0以前的两个特殊方法getDex和getBytes(这两个方法在android8开始废弃)

android中java.lang.Class类有一个名为getDex的方法, 可以获得某一个类的Dex对象

1
2
3
4
5
6
public Dex getDex() {
    if (dexCache == null) {
        return null;
    }
    return dexCache.getDex();
}

Dex又有一个方法名为getBytes, 可以获取Dex对象的内存数据

1
2
3
4
5
6
7
public byte[] getBytes() {
        ByteBuffer data = this.data.duplicate(); // positioned ByteBuffers aren't thread safe
        byte[] result = new byte[data.capacity()];
        data.position(0);
        data.get(result);
        return result;
}

FDex2首先就是通过反射获取这两个类的引用

1
2
3
4
5
6
7
8
9
10
11
12
13
public void initRefect(){
       try {
           // public byte[] getBytes()
           Dex = Class.forName("com.android.dex.Dex");
           Dex_getBytes = Dex.getDeclaredMethod("getBytes",null);
           // public Dex getDex()
           getDex = Class.forName("java.lang.Class").getDeclaredMethod("getDex",null);
       } catch (ClassNotFoundException e) {
           e.printStackTrace();
       } catch (NoSuchMethodException e) {
           e.printStackTrace();
       }
   }

接着使用xposed对java.lang.ClassLoader的loadClass方法进行hook

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
@Override
    public void handleLoadPackage(XC_LoadPackage.LoadPackageParam lpparam) throws Throwable {
        initRefect();
        XposedBridge.log("目标包名："+ lpparam.packageName);
        String str = "java.lang.ClassLoader";
        String str2 = "loadClass";
        final String packagename = "com.jiongji.andriod.card";

        //   protected Class<?> loadClass(String className, boolean resolve) throws ClassNotFoundException
        if(lpparam.packageName.equals(packagename)){
            // public static Unhook findAndHookMethod(String var0, ClassLoader var1, String var2, Object... var3)
            XposedHelpers.findAndHookMethod(str, lpparam.classLoader, str2, String.class, Boolean.TYPE, new XC_MethodHook() {
                @Override
                protected void afterHookedMethod(MethodHookParam param) throws Throwable {
                    super.afterHookedMethod(param);
                    //获取hook函数返回类
                    Class cls = (Class) param.getResult();
                    if(cls == null){
                        return;
                    }
                    String name = cls.getName();
                    XposedBridge.log("当前类名："+name);
                    byte[] bArr = (byte[]) Dex_getBytes.invoke(getDex.invoke(cls,null)); //Class.getDex().getBytes()
                    if(bArr == null) {
                        XposedBridge.log("数据为空，返回");
                        return;

                    }
                    XposedBridge.log("开始写数据");
                    String dex_path = "/data/data/"+packagename+"/"+packagename+"_"+bArr.length+".dex";
                    XposedBridge.log(dex_path);
                    File file = new File(dex_path);
                    if(file.exists()){
                        return;
                    }
                    writeByte(bArr,file.getAbsolutePath());
                }

                @Override
                protected void beforeHookedMethod(MethodHookParam param) throws Throwable {
                    super.beforeHookedMethod(param);
                }
            });
        }

    }

其入口是IXposedHookLoadPackage, 在应用加载时触发回调

之后使用方法findAndHookMethod进行hook, 该方法有2个重载

这里选择的是

1
2
3
4
5
6
public static Unhook findAndHookMethod(
    String className,          // 目标类的全限定名
    ClassLoader classLoader,    // 目标类的类加载器
    String methodName,         // 目标方法名
    Object... parameterTypesAndCallback // 方法参数类型和回调
)

第四个参数是可变参数, 用于指定目标方法的参数类型和回调逻辑, 且参数类型的顺序必须与目标方法的签名一致(避免有重载的情况)

源码中就是hook java.lang.ClassLoader的loadClass方法

待其执行完毕后从返回值获取到加载得到的类, 并调用getDex方法和getBytes方法从而获取到对应的内存字节流并将其保存

1
2
3
4
5
6
7
8
9
10
public void writeByte(byte[] bArr,String str){
        try {
            OutputStream outputStream = new FileOutputStream(str);
            outputStream.write(bArr);
            outputStream.close();
        }  catch (IOException e) {
            e.printStackTrace();
            XposedBridge.log("文件写出失败");
        }
}

这个脚本完全也可以通过frida来实现

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
function savedex(dexbytes, dexpath) {
    Java.perform(function () {
        var File = Java.use("java.io.File");
        var FileOutputStream = Java.use("java.io.FileOutputStream");
        var fileobj = File.$new(dexpath);
        var fileOutputStreamobj = FileOutputStream.$new(fileobj);
        fileOutputStreamobj.write(dexbytes);
        fileOutputStreamobj.close();
        console.warn("[dumpdex] Dex saved to: " + dexpath);
    });
}

function fdex2(classname) {
    Java.perform(function () {
        Java.enumerateClassLoadersSync().forEach(function (loader) {
            try {
                var ThisClass = loader.loadClass(classname);
                if (ThisClass) {
                    console.log("[dumpdex] Found class: " + classname + " in loader: " + loader);

                    var dexobj = ThisClass.getDex();
                    if (dexobj) {
                        var dexbytearray = dexobj.getBytes();
                        if (dexbytearray) {
                            var savedexpath = "/sdcard/" + classname.replace(/\./g, "_") + ".dex";
                            savedex(dexbytearray, savedexpath);
                        } else {
                            console.error("[dumpdex] Failed to get Dex bytes for class: " + classname);
                        }
                    } else {
                        console.error("[dumpdex] Failed to get Dex object for class: " + classname);
                    }
                }
            } catch (e) {
                console.error("[dumpdex] Error while processing loader: " + loader + ", error: " + e.message);
            }
        });
    });
}

Java.perform(function () {
    fdex2("com.example.target.TargetClass");
});

实战登山赛车

找款小游戏试试手, 登山赛车版本1.48.18, 没有加壳

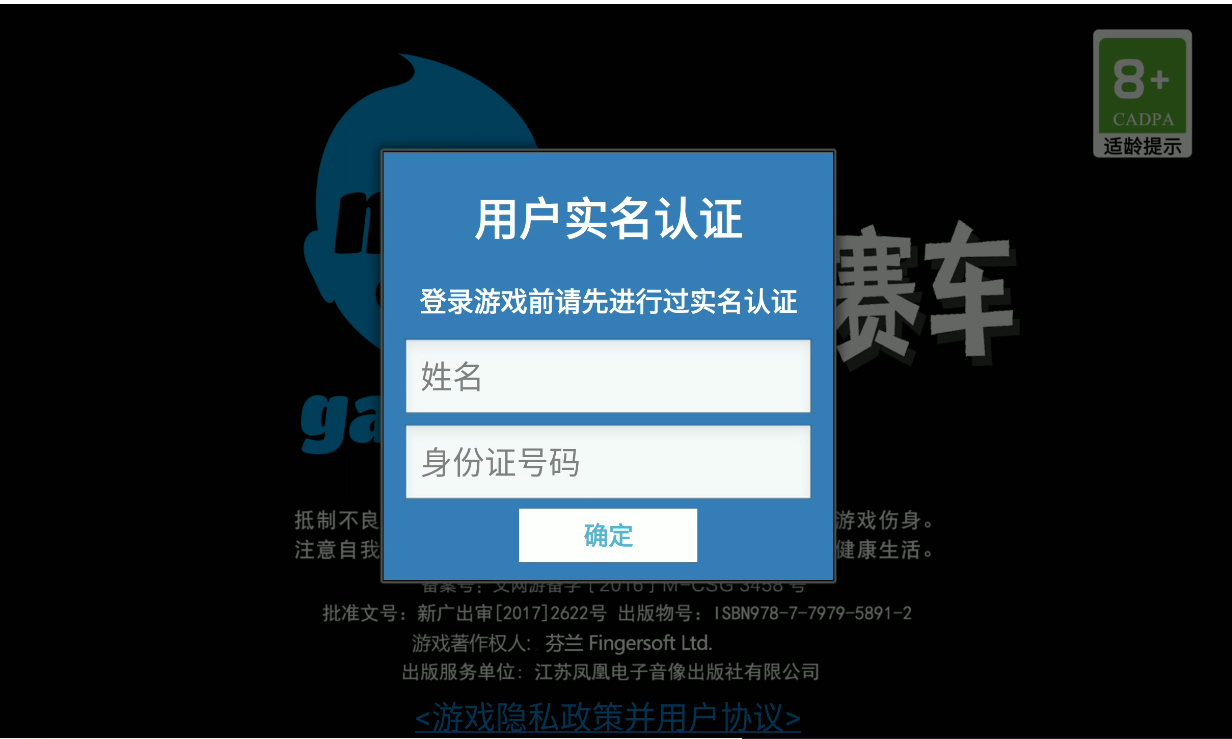

游戏打开竟然要求实名

且该窗口无法关闭, 所以首先得想办法pass掉实名验证

jadx打开, 通过activity记录能够知道, 由MyStartActivity启动了IDCheckDialog进行验证

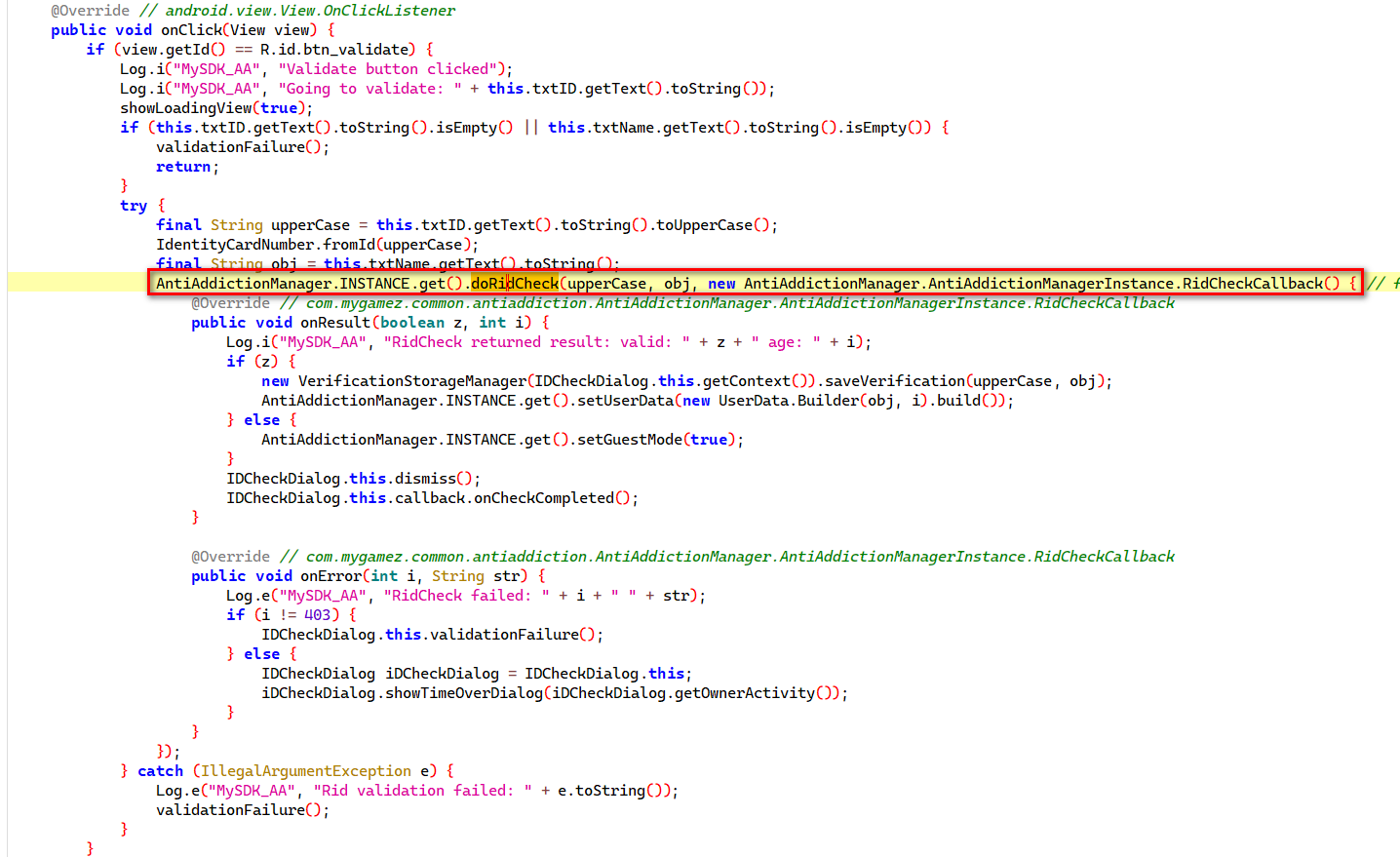

一开始的想法是hook点击确定后的doRidCheck函数

但发现这个函数怎么都hook不到, 但他的同级函数却可以被hook, 暂时搞不明白

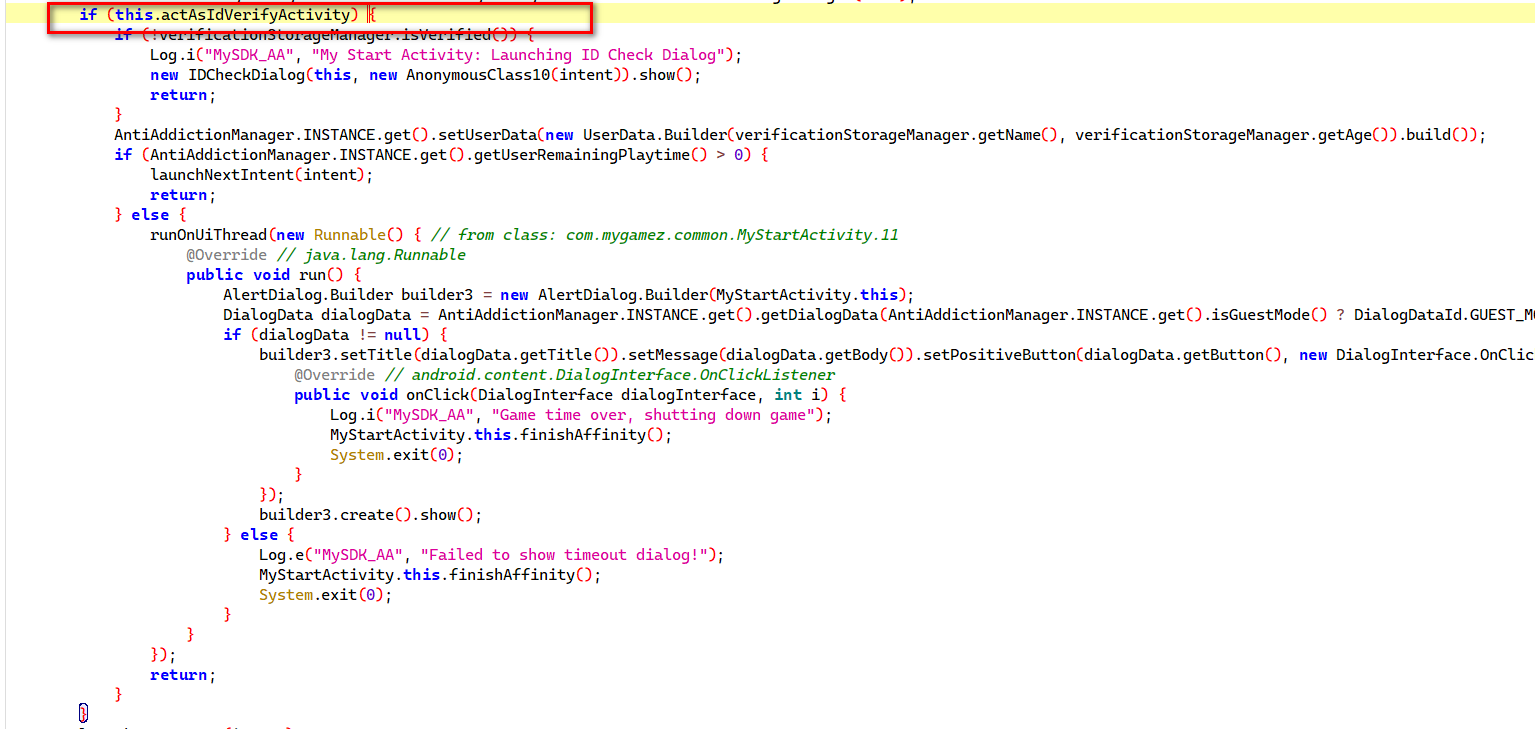

发现只有当actAsIdVerifyActivity为true时才会进入验证过程, 其又依赖于loginActivityExists的返回值

private boolean actAsIdVerifyActivity = !loginActivityExists();

所以我们直接hook loginActivityExists的返回值为true

先使用frida尝试

1
2
3
4
5
6
7
8
9
Java.perform(function () {
    let MyStartActivity = Java.use("com.mygamez.common.MyStartActivity");
    MyStartActivity["loginActivityExists"].implementation = function () {
        console.log("MyStartActivity.loginActivityExists is called");
        let result = this["loginActivityExists"]();
        console.log("MyStartActivity.loginActivityExists result=" + result);
        return true;
    };
});

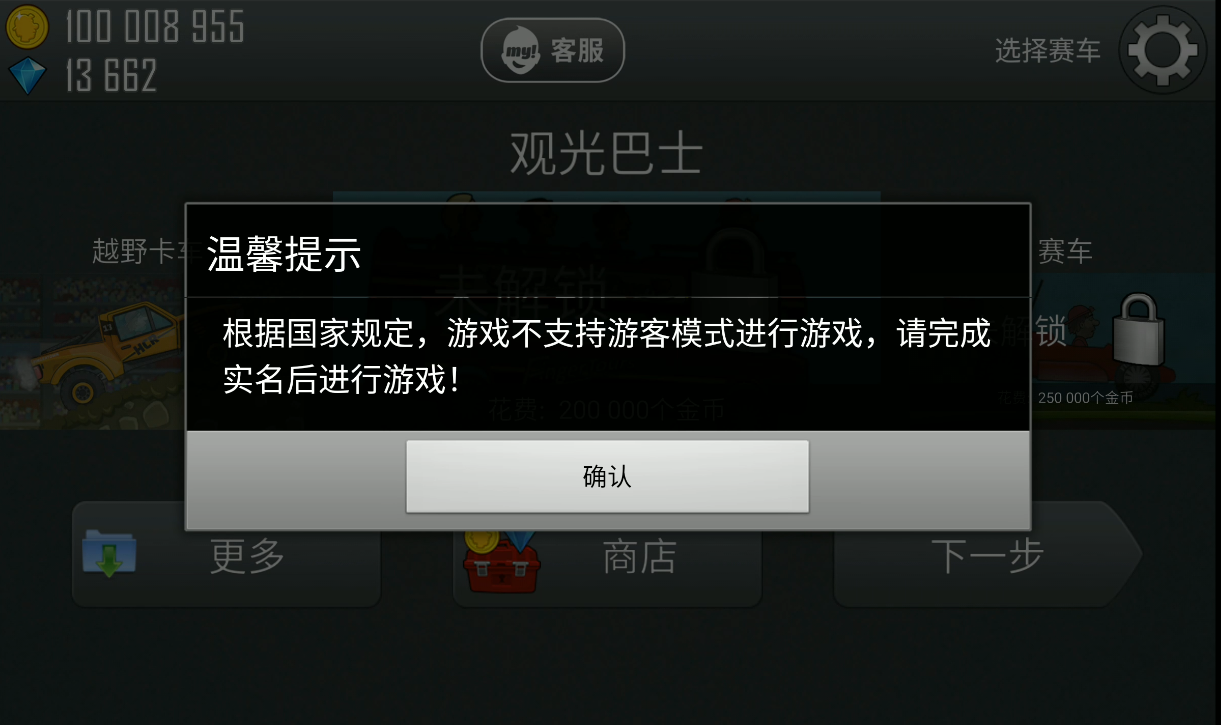

成功加载但显然后续还有其他检测, 通过关键字可以知道游戏检测到了我们是游客模式

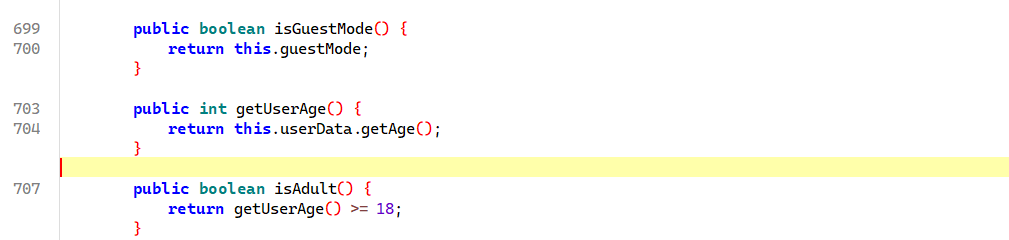

在防沉迷类下找到这三个函数

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
Java.perform(function () {
    let MyStartActivity = Java.use("com.mygamez.common.MyStartActivity");
    MyStartActivity["loginActivityExists"].implementation = function () {
        console.log("MyStartActivity.loginActivityExists is called");
        let result = this["loginActivityExists"]();
        console.log("MyStartActivity.loginActivityExists result=" + result);
        return true;
    };

    let AntiAddictionManagerInstance = Java.use("com.mygamez.common.antiaddiction.AntiAddictionManager$AntiAddictionManagerInstance");
    AntiAddictionManagerInstance["isGuestMode"].implementation = function () {
        console.log("AntiAddictionManagerInstance.isGuestMode is called");
        return false;
    };

    AntiAddictionManagerInstance["getUserAge"].implementation = function () {
        console.log("AntiAddictionManagerInstance.getUserAge is called");
        let result = this["getUserAge"]();
        console.log("AntiAddictionManagerInstance.getUserAge result=" + result);
        return 20;
    };
});

之后就可以成功进入游戏, 尝试内购

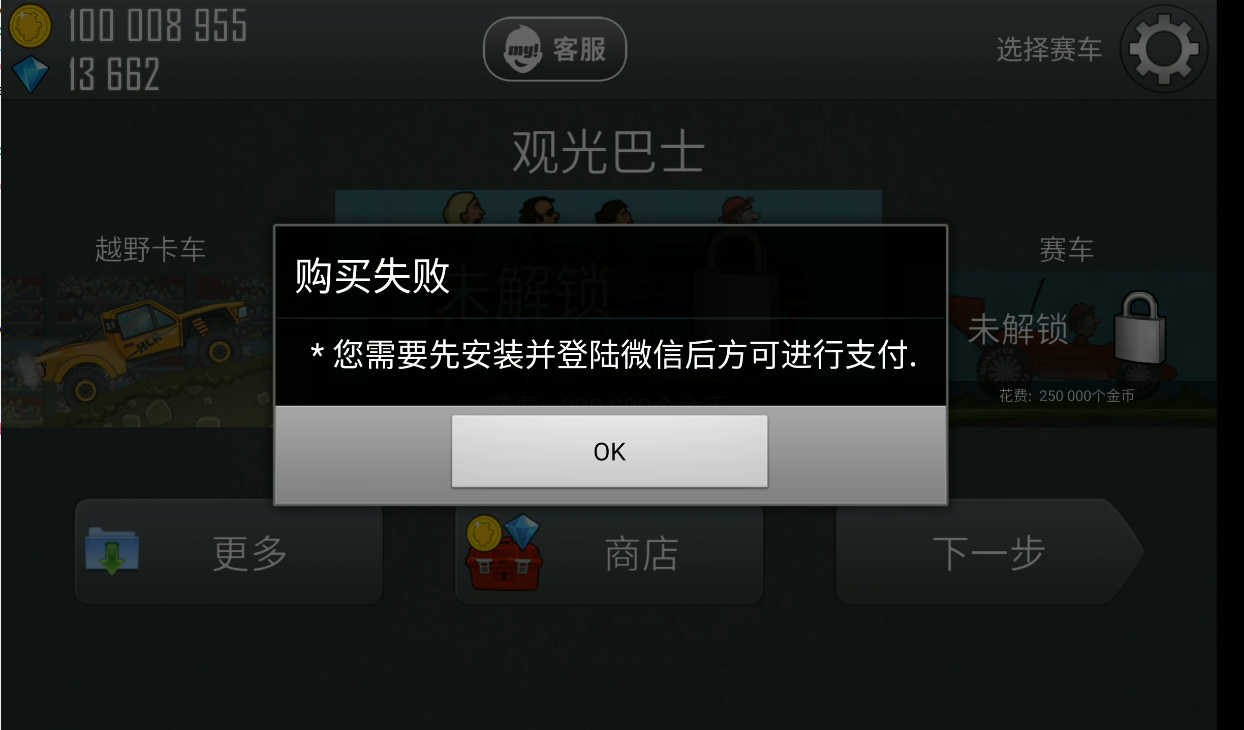

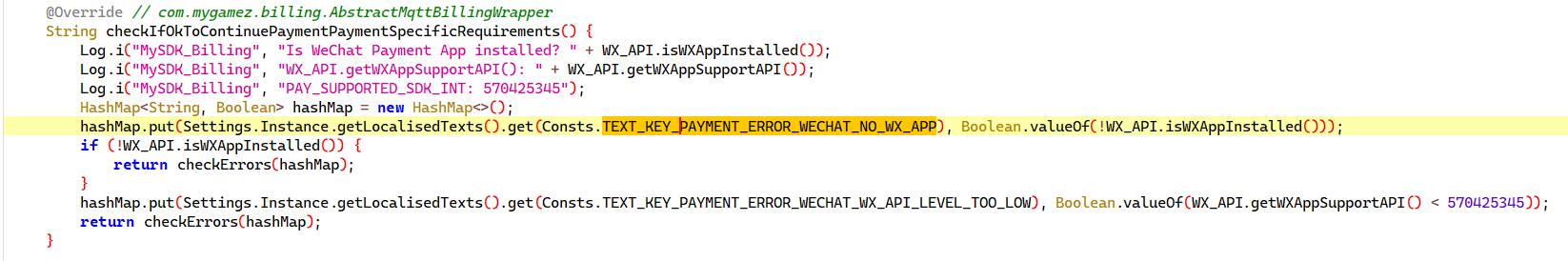

提示需要安装微信, 通过字符串找到检测处

然后其调用处判断返回值是否是空串, 如果是则说明没有错误, 所以hook其返回值始终返回空

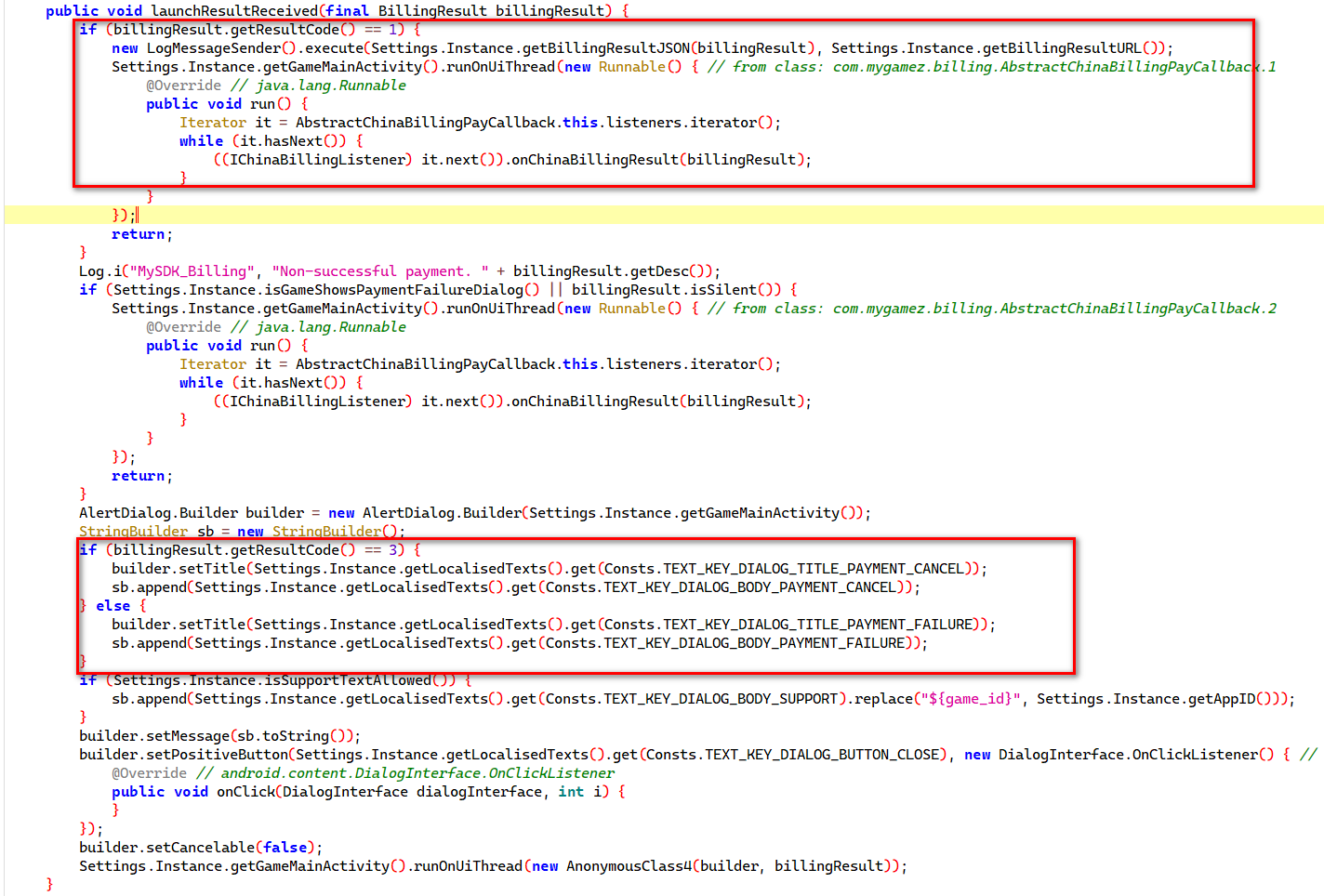

接着继续搜索购买失败, 找到对应关键处

可以知道只有getResultCode返回1时才是购买成功, hook其返回值

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
Java.perform(function () {
    let MyStartActivity = Java.use("com.mygamez.common.MyStartActivity");
    MyStartActivity["loginActivityExists"].implementation = function () {
        console.log("MyStartActivity.loginActivityExists is called");
        let result = this["loginActivityExists"]();
        console.log("MyStartActivity.loginActivityExists result=" + result);
        return true;
    };

    let AntiAddictionManagerInstance = Java.use("com.mygamez.common.antiaddiction.AntiAddictionManager$AntiAddictionManagerInstance");
    AntiAddictionManagerInstance["isGuestMode"].implementation = function () {
        console.log("AntiAddictionManagerInstance.isGuestMode is called");
        return false;
    };

    AntiAddictionManagerInstance["getUserAge"].implementation = function () {
        console.log("AntiAddictionManagerInstance.getUserAge is called");
        let result = this["getUserAge"]();
        console.log("AntiAddictionManagerInstance.getUserAge result=" + result);
        return 20;
    };
    let BillingWrapperWeChat = Java.use("com.mygamez.billing.BillingWrapperWeChat");
    BillingWrapperWeChat["checkIfOkToContinuePaymentPaymentSpecificRequirements"].implementation = function () {
        console.log("BillingWrapperWeChat.checkIfOkToContinuePaymentPaymentSpecificRequirements is called");
        let result = this["checkIfOkToContinuePaymentPaymentSpecificRequirements"]();
        console.log("BillingWrapperWeChat.checkIfOkToContinuePaymentPaymentSpecificRequirements result=" + result);
        return "";
    };

    let BillingResult = Java.use("com.mygamez.billing.BillingResult");
    BillingResult["getResultCode"].implementation = function () {
        console.log("BillingResult.getResultCode is called");
        let result = this["getResultCode"]();
        console.log("BillingResult.getResultCode result=" + result);
        return 1;
    };
});

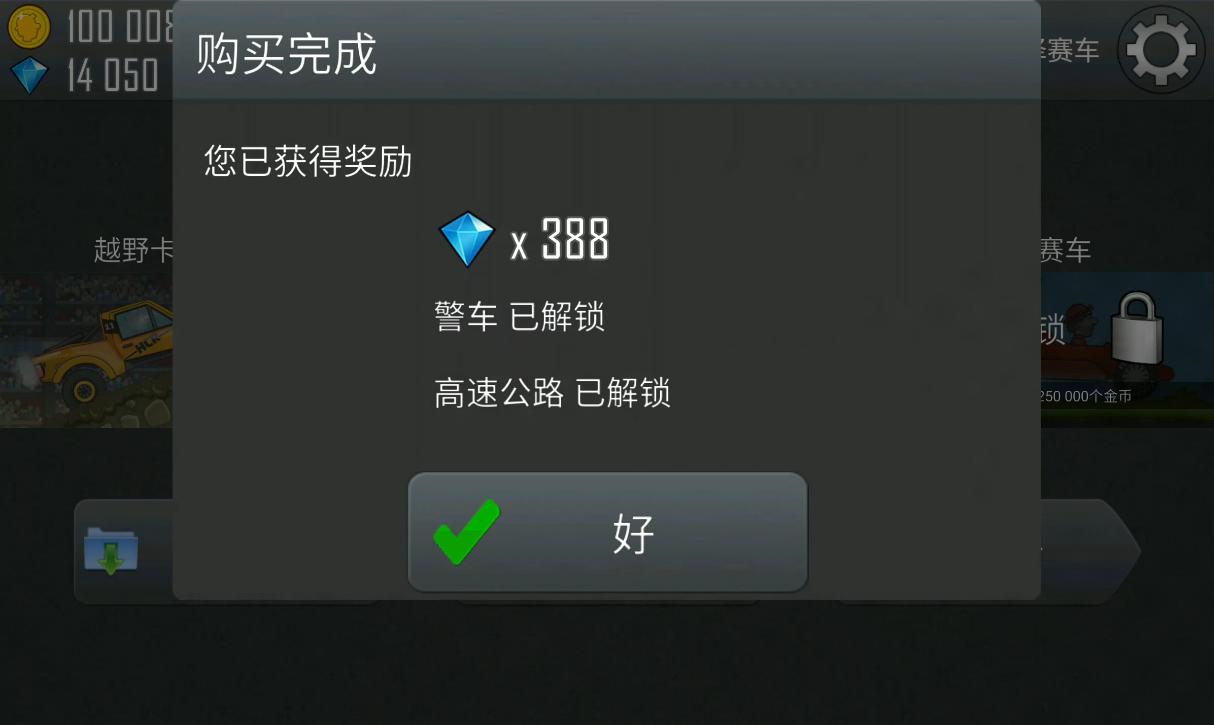

此时已经破解完成, 接下来将frida代码转为xposed

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
package com.example.xposed;

import de.robv.android.xposed.IXposedHookLoadPackage;
import de.robv.android.xposed.XC_MethodHook;
import de.robv.android.xposed.XposedBridge;
import de.robv.android.xposed.XposedHelpers;
import de.robv.android.xposed.callbacks.XC_LoadPackage;

public class main implements IXposedHookLoadPackage {
    @Override
    public void handleLoadPackage(final XC_LoadPackage.LoadPackageParam lpparam) throws Throwable {
        if (!lpparam.packageName.equals("com.fingersoft.hillclimb.noncmcc")) {
            return;
        }

        // Hook MyStartActivity.loginActivityExists
        XposedHelpers.findAndHookMethod("com.mygamez.common.MyStartActivity", lpparam.classLoader, "loginActivityExists", new XC_MethodHook() {
            @Override
            protected void beforeHookedMethod(MethodHookParam param) throws Throwable {
                XposedBridge.log("loginActivityExists is called");
            }

            @Override
            protected void afterHookedMethod(MethodHookParam param) throws Throwable {
                XposedBridge.log("loginActivityExists result=" + param.getResult());
                param.setResult(true);
            }
        });

        // Hook AntiAddictionManager$AntiAddictionManagerInstance.isGuestMode
        XposedHelpers.findAndHookMethod("com.mygamez.common.antiaddiction.AntiAddictionManager$AntiAddictionManagerInstance", lpparam.classLoader, "isGuestMode", new XC_MethodHook() {
            @Override
            protected void beforeHookedMethod(MethodHookParam param) throws Throwable {
                XposedBridge.log("isGuestMode is called");
            }

            @Override
            protected void afterHookedMethod(MethodHookParam param) throws Throwable {
                param.setResult(false);
            }
        });

        // Hook AntiAddictionManager$AntiAddictionManagerInstance.getUserAge
        XposedHelpers.findAndHookMethod("com.mygamez.common.antiaddiction.AntiAddictionManager$AntiAddictionManagerInstance", lpparam.classLoader, "getUserAge", new XC_MethodHook() {
            @Override
            protected void beforeHookedMethod(MethodHookParam param) throws Throwable {
                XposedBridge.log("getUserAge is called");
            }

            @Override
            protected void afterHookedMethod(MethodHookParam param) throws Throwable {
                XposedBridge.log("getUserAge result=" + param.getResult());
                param.setResult(20);
            }
        });

        // Hook BillingWrapperWeChat.checkIfOkToContinuePaymentPaymentSpecificRequirements
        XposedHelpers.findAndHookMethod("com.mygamez.billing.BillingWrapperWeChat", lpparam.classLoader, "checkIfOkToContinuePaymentPaymentSpecificRequirements", new XC_MethodHook() {
            @Override
            protected void beforeHookedMethod(MethodHookParam param) throws Throwable {
                XposedBridge.log("checkIfOkToContinuePaymentPaymentSpecificRequirements is called");
            }

            @Override
            protected void afterHookedMethod(MethodHookParam param) throws Throwable {
                XposedBridge.log("checkIfOkToContinuePaymentPaymentSpecificRequirements result=" + param.getResult());
                param.setResult("");
            }
        });

        // Hook BillingResult.getResultCode
        XposedHelpers.findAndHookMethod("com.mygamez.billing.BillingResult", lpparam.classLoader, "getResultCode", new XC_MethodHook() {
            @Override
            protected void beforeHookedMethod(MethodHookParam param) throws Throwable {
                XposedBridge.log("getResultCode is called");
            }

            @Override
            protected void afterHookedMethod(MethodHookParam param) throws Throwable {
                XposedBridge.log("getResultCode result=" + param.getResult());
                param.setResult(1);
            }
        });
    }
}

安装并启用模块
